Allen-Bradley 20BD011A0AYNANC0 PowerFlex 700 7.5 HP AC Drive, Used
Allen-Bradley 20BD011A0AYNANC0 PowerFlex 700 7.5 HP AC Drive, Used
Allen-Bradley 20BD011A0AYNANC0 PowerFlex 700 AC drive, 7.5 HP / 11 A normal duty, 480 V AC 3-phase, frame 0, vector control with 24 V DC I/O, NEMA Type 1. Condition: used, Series B. Rockwell Automation has discontinued the PowerFlex 700, so an exact-catalog replacement is the quickest way to keep an existing machine running without changing wiring, parameters or the panel layout.

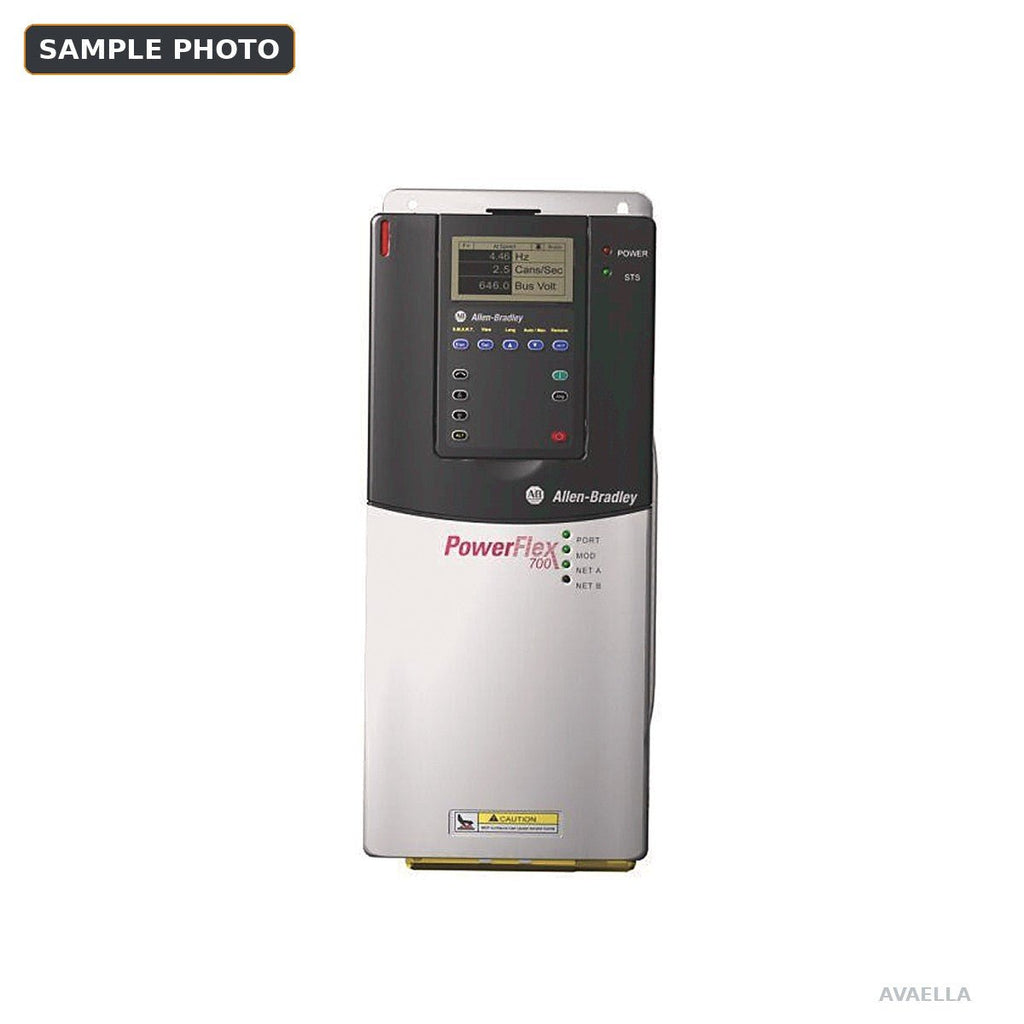

Sample photo. Actual unit may vary in series, revision and cosmetic condition.
Condition
- Used, Series B
- Cosmetic wear consistent with prior service may be present.
- Photos are sample photos, not the actual unit.
What's Included
- One 20BD011A0AYNANC0 drive only
Per the catalog number this drive ships with a blank cover, not a HIM keypad (code 0). No HIM, communication adapter, manuals, cables, fuses or brake resistor are included. Parameters from the previous installation may still be stored; plan to set the drive up for your motor.
Specifications
| Catalog number | 20BD011A0AYNANC0 |
| Product family | PowerFlex 700 adjustable frequency AC drive (20B) |
| Series | Series B |
| Input | 3-phase 480 V AC class (code D), 380–480 V AC |
| Normal-duty rating | 7.5 HP, 11 A continuous output at 480 V (5.5 kW / 11.5 A at 400 V) |
| Heavy-duty rating | 5 HP at 480 V |
| Output current (480 V, ND) | 11 A continuous, 12.1 A for 60 s, 16.5 A for 3 s |
| Input current (480 V) | 9.5 A, 7.9 kVA |
| Frame | Frame 0 |
| Enclosure (code A) | IP20, NEMA/UL Type 1, conformal coated |
| Operator interface (code 0) | Blank cover, no HIM fitted |
| Brake (codes Y / N) | Dynamic brake IGBT fitted; no internal brake resistor |
| Emission (code A) | CE filter and common-mode choke |
| Communication (code N) | No communication adapter fitted |
| Control and I/O (code C) | Vector control, 24 V DC I/O |
| Feedback (code 0) | No encoder feedback board |
| Motor control | Sensorless vector, V/Hz and vector control modes; 0–420 Hz output on vector control |
| Overload | 110% for 1 minute, 150% for 3 seconds |
| Dimensions (W x H x D) | 110 x 336 x 200 mm (4.33 x 13.23 x 7.87 in.) |
| Weight | 5.22 kg (11.5 lb) drive only |
| Ambient (NEMA Type 1) | 0–40 °C (32–104 °F) |
| Lifecycle | PowerFlex 700 discontinued by Rockwell Automation (no longer sold new after November 30, 2023) |
Specs are from the PowerFlex 700 Adjustable Frequency AC Drive Technical Data, publication 20B-TD001.
Documentation
PowerFlex 700 AC Drive Technical Data (PDF), 20B-TD001
PowerFlex 700 AC Drives, Vector Control User Manual (PDF), 20B-UM002
Shipping
Free insured shipping within the continental US. Usually ships in 2–3 business days.
Warranty & Returns
Avaella backs this unit with a 1-year replacement warranty and 30-day returns.
Questions? Email sales@avaella.net.
Allen-Bradley, PanelView and PowerFlex are trademarks of Rockwell Automation, Inc. Avaella LLC is not affiliated with Rockwell Automation and is not an authorized distributor. The original manufacturer warranty does not apply.
