Allen-Bradley 6176M-19PT VersaView 19" Touchscreen Monitor, Used Tested
Allen-Bradley 6176M-19PT VersaView 19" Touchscreen Monitor, Used Tested
Allen-Bradley 6176M-19PT 19-inch standard industrial monitor (1950M), panel-mount aluminum bezel with resistive touchscreen. Condition: used, tested and cleaned. Discontinued by Rockwell Automation, so it's a good fit for keeping an existing line running without redesigning the panel.

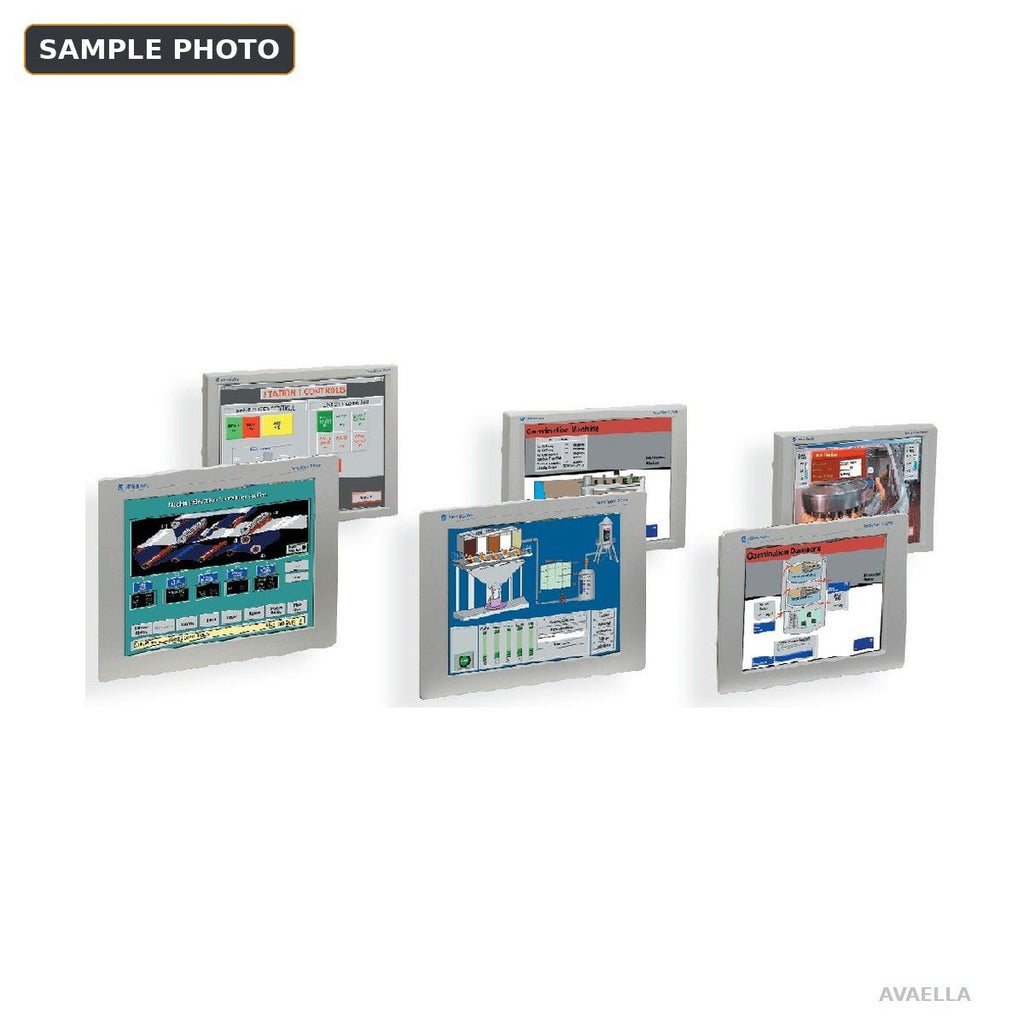

Sample photo. Actual unit may vary in series, revision and cosmetic condition.
Condition
- Used, tested and cleaned
- Series may vary. Email sales@avaella.net to confirm before ordering.
- Photos are sample photos, not the actual unit.
Fulfillment Note
This order may ship from Avaella's own stock: a fully refurbished unit that includes the power supply and mounting brackets, in equal or better condition than described, at no extra cost. Either way, you receive at least what this listing describes, with the same 3–5 business day handling, 1-year Avaella replacement warranty and 30-day returns.
What's Included
- 6176M-19PT 19" touchscreen display unit only
Power supply and mounting brackets/clips are not included unless stated. This monitor needs an external 12V DC AC adapter. We recommend the Allen-Bradley 6189V-MPS3. Replacement panel clips are 6189V-MCLPS2.
Specifications
| Catalog number | 6176M-19PT (Model 1950M). Series may vary; email to confirm |
| Display | 19 in. (483 mm) diagonal color active-matrix TFT LCD |
| Viewable area | approx. 377 x 302 mm (14.8 x 11.9 in.) |
| Resolution | 1280 x 1024 native, 16.7 million colors |
| Luminance | 300 cd/m² (nits), typical |
| Contrast ratio | 800:1, typical |
| Response time | 6 ms rising / 3 ms falling |
| Backlight | CCFT tubes, 50,000 hr to half brightness |
| Touchscreen | Resistive, anti-glare (controller: Panjit on Series A/B, EETI on Series C) |
| Touch interface | RS-232 (DB-9) and USB, 9600 baud default |
| Touch drivers | Series A/B: Windows XP Pro, Windows Server 2003 (32-bit), Windows 7 Pro (32-bit). Other series: see manual |
| Video inputs | Analog VGA (HD-15) and digital DVI-D |
| Other I/O | USB hub for keyboard, mouse, etc. |
| Controls | OSD menus with lockout, one-button auto-adjust |
| Input power | 12V DC via an external AC adapter (required, not included unless stated). Adapter input is 90–264V AC autoranging, 47–63 Hz |
| Power consumption | 3.5 A at 42 W |
| Recommended AC adapter | 6189V-MPS3 |
| Mounting | Panel mount (12 mounting clips). 1950M also fits a standard 19 in. EIA rack |
| Dimensions (H x W x D) | 399.3 x 482.6 x 58.0 mm (15.7 x 19.0 x 2.3 in.) |
| Panel cutout (H x W) | 363.5 x 449.6 mm (14.31 x 17.70 in.). Panel at least 14 gauge, max 6.25 mm (0.25 in.) thick |
| Weight | 7.5 kg (16.5 lb), monitor only |
| Enclosure rating | NEMA Type 4, 12 / IEC IP66 (when panel mounted) |
| Operating temperature | 0–45 °C (32–113 °F) |
| Storage temperature | -20–60 °C (-4–140 °F) |
| Humidity | 10–90% non-condensing |
| Shock | 15 g operating / 20 g non-operating (1/2 sine, 11 ms) |
| Vibration (operating) | 0.015 in p-p 10–53 Hz, 1.0 g peak 53–640 Hz |
| Certifications | UL/c-UL Listed, CE, C-Tick, RoHS (EU and China) |
| Lifecycle | Discontinued by Rockwell Automation |
Specs are from Rockwell Automation publication 6176M-UM001D-EN-P.
Documentation
Standard Industrial Monitors User Manual (PDF), 6176M-UM001
Installation Instructions (PDF), 6176M-IN001
Shipping
Free insured shipping within the continental US. Usually ships in 3–5 business days.
Warranty & Returns
Avaella backs this unit with a 1-year replacement warranty and 30-day returns.
Questions? Email sales@avaella.net.
Allen-Bradley and VersaView are trademarks of Rockwell Automation, Inc. Avaella LLC is not affiliated with Rockwell Automation or an authorized distributor. The original manufacturer warranty does not apply.
