Eurotherm 590P/0035/500/0011/UK/ARM/0/0/0 590+ 35A Regenerative DC Drive, Used Tested
Eurotherm 590P/0035/500/0011/UK/ARM/0/0/0 590+ 35A Regenerative DC Drive, Used Tested
Eurotherm Drives 590P/0035/500/0011/UK/ARM/0/0/0 590+ four-quadrant regenerative DC digital drive, 35 A armature, 15 kW / 20 hp, for 3-phase 220–500 V AC supplies, with built-in keypad. Condition: used and tested. This legacy 590+ series product code is no longer built by the manufacturer (now Parker SSD Drives), so it is a direct drop-in for keeping an existing machine or panel running without re-engineering or re-wiring it.

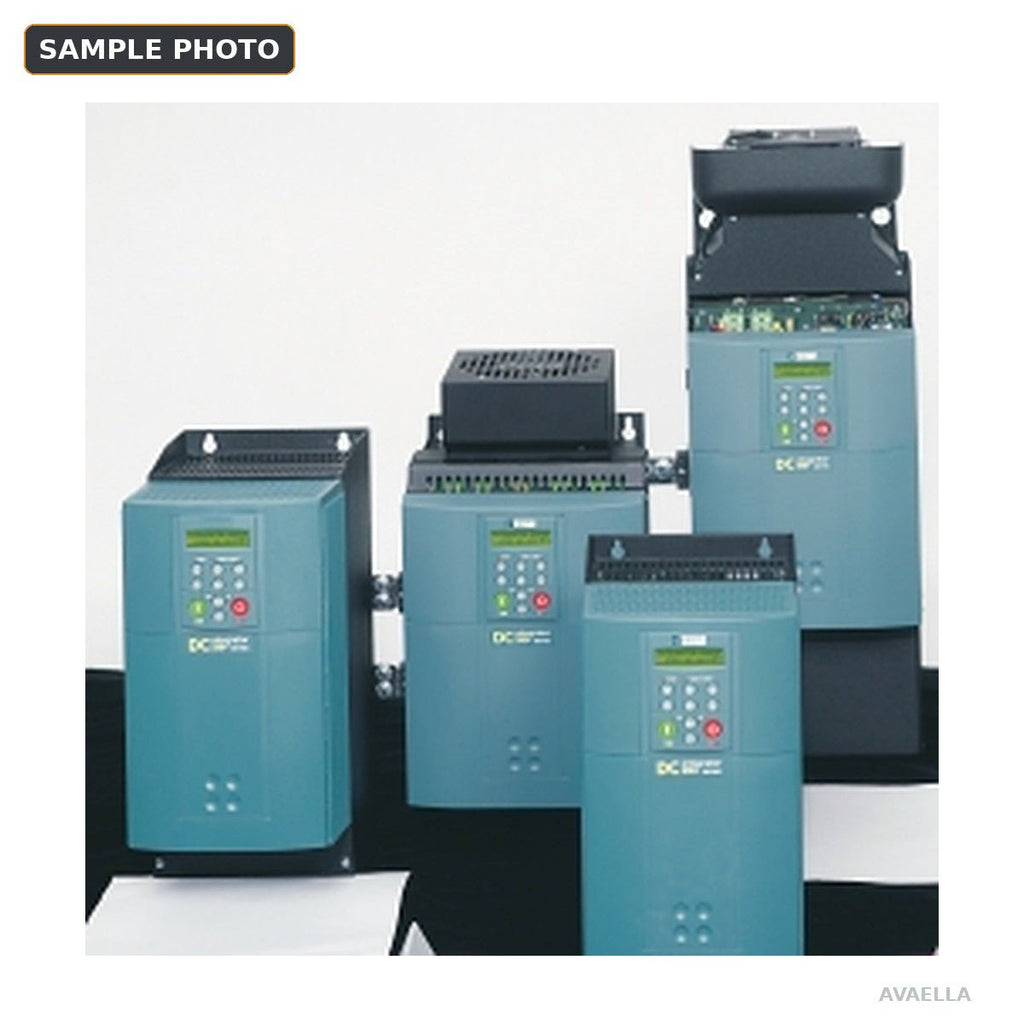

Sample photo. Actual unit may vary in series, revision and cosmetic condition.
Condition
- Used, tested
- Cosmetic wear consistent with prior service may be present.
- Photos are sample photos, not the actual unit.
What's Included
- One 590P/0035/500/0011/UK/ARM/0/0/0 drive unit only
No manuals, cables, line chokes, EMC filters, fuses, contactor, feedback cards or configuration software are included. Per the product code, the "0011" block calls for the built-in 6901 keypad. Email sales@avaella.net to confirm the keypad is fitted before ordering if you need it. Parameters from the previous installation may still be stored; plan to set up the drive for your motor.
Specifications
| Catalog number | 590P/0035/500/0011/UK/ARM/0/0/0 |
| Product | 590+ DC digital drive, 4-quadrant regenerative, frame 1 |
| Operating quadrants | 4-quadrant (regenerative): forward and reverse drive and braking |
| Armature output | 35 A DC continuous; overload 150% for 30 s or 200% for 10 s |
| Rated power | 15 kW / 20 hp at 500 V DC armature |
| Main supply | 3-phase 220–500 V AC ±10%, 50/60 Hz (standard MV build, code 500) |
| AC supply current | Approx. 0.9 × DC output, about 32 A rms at full load |
| Motor field supply | Built-in motor field regulator, 4 A max (internal field supply only on frame 1) |
| Auxiliary supply | Single-phase 110–230 V AC ±10%, 50/60 Hz, 3 A max |
| Full-load losses | 117 W |
| Short-circuit rating | 5 kA rms symmetrical |
| Speed feedback | Armature voltage feedback (code ARM); no tachogenerator or encoder card specified |
| Mechanical package | Standard livery and mechanical package, built-in keypad (code 0011) |
| Language | UK: English user interface |
| Options | No communications or special options (code 0/0/0) |
| Enclosure | IP20; UL Open Type |
| Frame / dimensions (W x H x D) | Frame 1: 200 x 375 x 220 mm (7.9 x 14.8 x 8.7 in.) |
| Weight | 6.4 kg (14 lb) |
| Operating temperature | 0–45 °C; derate output 1% per °C above, to 55 °C max |
| Storage temperature | -25 to +55 °C |
| Humidity | 85% RH max at 40 °C, non-condensing |
| Altitude | Derate 1% per 200 m above 500 m, 2,000 m max |
| Lifecycle | Legacy product code; superseded by the manufacturer |
Specs are from the DC590+ Series DC Digital Drive Product Manual, HA466461U004.
Documentation
DC590+ Series DC Digital Drive Product Manual (PDF), HA466461U004
Shipping
Free insured shipping within the continental US. Usually ships in 3–5 business days.
Warranty & Returns
Avaella backs this unit with a 1-year replacement warranty and 30-day returns.
Questions? Email sales@avaella.net.
Eurotherm and SSD Drives are trademarks of their respective owners (Eurotherm drives business now part of Parker Hannifin). Avaella LLC is not affiliated with Eurotherm, SSD Drives or Parker Hannifin, nor an authorized distributor. The original manufacturer warranty does not apply.
