Eurotherm 605C/0055/400/0011/UK/0/0/B0/0/0 605C 5.5 kW AC Drive, Used Tested
Eurotherm 605C/0055/400/0011/UK/0/0/B0/0/0 605C 5.5 kW AC Drive, Used Tested
Eurotherm Drives 605C/0055/400/0011/UK/0/0/B0/0/0 605C frequency inverter (AC drive), 5.5 kW, 3-phase 380–460 V AC, with built-in dynamic brake switch. Condition: used and tested. The 605C is discontinued by the manufacturer (now Parker SSD Drives), so this is a direct drop-in for keeping an existing machine or panel running without re-engineering it.

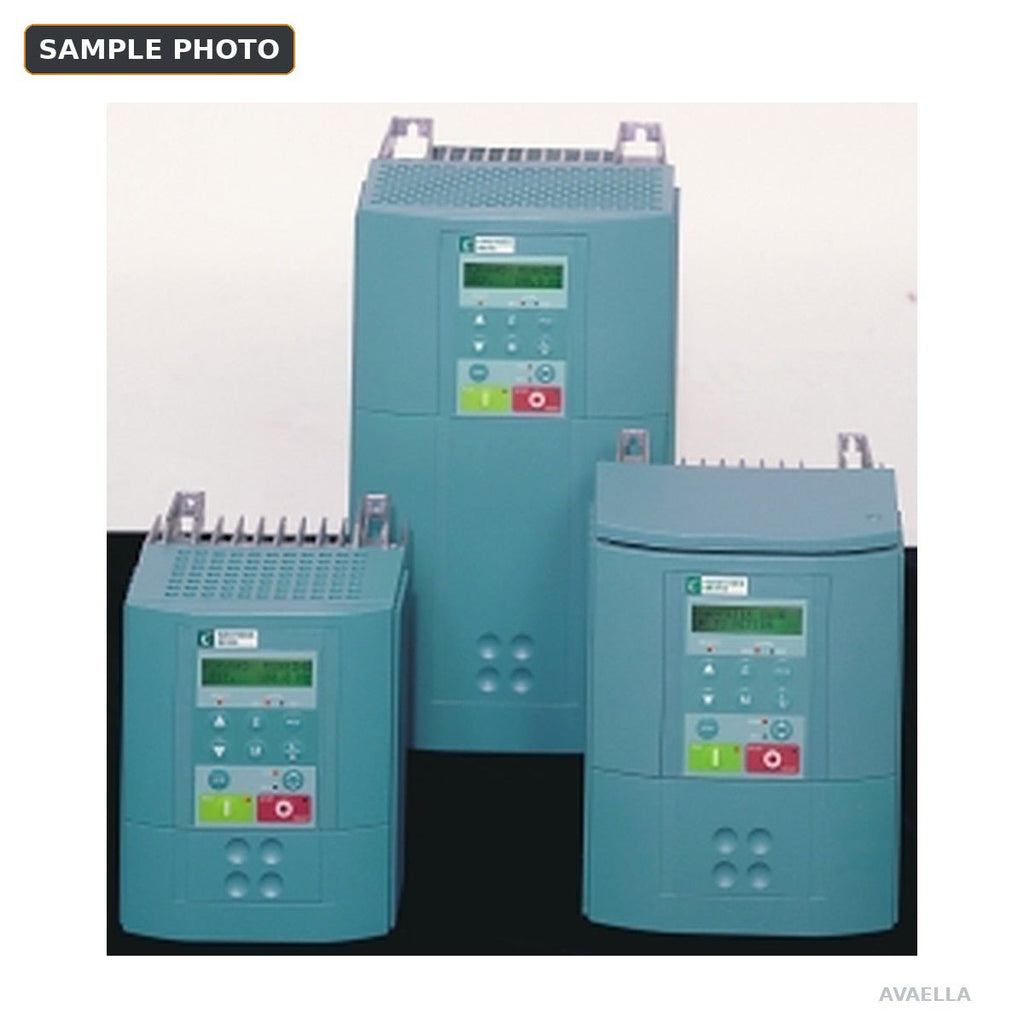

Sample photo. Actual unit may vary in series, revision and cosmetic condition.
Condition
- Used, tested
- Cosmetic wear consistent with prior service may be present.
- Photos are sample photos, not the actual unit.
What's Included
- One 605C/0055/400/0011/UK/0/0/B0/0/0 inverter unit only
No manuals, cables, braking resistors, EMC filter, or configuration software are included. Per the product code, the "0011" block calls for the 6051 Operator Station (keypad). Email sales@avaella.net to confirm the keypad is fitted before ordering if you need it.
Specifications
| Catalog number | 605C/0055/400/0011/UK/0/0/B0/0/0 |
| Product | 605C frequency inverter (AC drive), frame C |
| Motor power | 5.5 kW / 7.5 hp constant torque; 7.5 kW / 10 hp quadratic torque |
| Supply | 3-phase 380–460 V AC ±10%, 45–65 Hz |
| Output current | 12 A constant torque (150% for 60 s); 16 A quadratic torque (110% for 10 s) |
| Input current | 15 A constant torque; 20 A quadratic torque |
| Input fuse rating | 20 A constant torque; 32 A quadratic torque |
| Max. power loss | 220 W constant torque; 270 W quadratic torque |
| Max. switching frequency | 6 kHz constant torque; 3 kHz quadratic torque |
| Output frequency | Selectable 0–120 Hz, 240 Hz or 480 Hz |
| Dynamic braking | Internal brake switch fitted (B0), external resistor required, not supplied. Minimum resistor 100 Ω; DC link brake voltage 750 V |
| Mechanical package | Standard livery, IP20 protected panel mounting (code 0011) |
| Operator station | 6051 Operator Station called for by code 0011 |
| Language / defaults | UK: English, 50 Hz base frequency default |
| Options | No speed-feedback option, no communications option, no special options |
| Enclosure | IP20; UL (c-UL) Open Type when cubicle mounted without top cover |
| Dimensions (H x W x D) | 348 x 201 x 208 mm (13.70 x 7.91 x 8.19 in.) |
| Weight | 7.9 kg (17.4 lb) |
| Operating temperature | 0–45 °C constant torque, 0–40 °C quadratic torque (derate to 50 °C max) |
| Storage temperature | -25 to +55 °C |
| Humidity | 85% RH max at 40 °C, non-condensing |
| Lifecycle | Discontinued by the manufacturer |
Specs are from the Eurotherm Drives 605C Frequency Inverter Product Manual, HA465013U001.
Documentation
605C Frequency Inverter Product Manual (PDF), HA465013U001
605C Product Code Breakdown (PDF)
605C Frame Size Guide (PDF)
Shipping
Free insured shipping within the continental US. Usually ships in 3–5 business days.
Warranty & Returns
Avaella backs this unit with a 1-year replacement warranty and 30-day returns.
Questions? Email sales@avaella.net.
Eurotherm and SSD Drives are trademarks of their respective owners (Eurotherm drives business now part of Parker Hannifin). Avaella LLC is not affiliated with Eurotherm, SSD Drives or Parker Hannifin, nor an authorized distributor. The original manufacturer warranty does not apply.
